12WS600 - JBL-SELENIUM
12” Woofer for low and mid bass professional sound reinforcement, offering high power capacity, outstanding low end response and exceptionally smooth transition into the vocal range.
- SPECIFICATIONS
- Nominal diameter mm (in) 305 (12)
- Nominal impedance 8 W
- Minimum impedance @ 212 Hz 7.4 W
- Sensitivity (2.83V@1m) averaged from 100 to 500 Hz 95 dB SPL
- Frequency response @ -10 dB 45 to 3,000 Hz
- Magnet material Barium ferrite
- Magnet weight 2,640 (94) g (oz)
- Frame material Aluminum
- Voice coil material Copper
BUMPER 1265 C
The 1265 C, with its 0.750' vented pole piece and 6 rolled in window basket, is designed to offer both a rich sound and withstand long hours of play in all types of applications from stage monitors, high power bass guitar combos and multi way systems.
- Diameter size in inches: 12
- Z - Nominal Impedance in Ohms 8
- Fs = Free air resonance frequesncy in Hz: 46.3
- Qts = Total Q Factor of driver: 0.37
- Vas = Equivalent acoustic volume in cubic feet: 2.2
- Xmax = peak linear displacement of cone in inches: 0.17
- Pe = Max power in watts: 510
- Ref = Driver's SPL 1W at 1m in dB: 93.7
- Voice Coil Diameter in inches 2.5
- Mounting Depth in inches: 4 1/2
- Revc = DC Voice coil resistance in Ohms: 5.52
- Zmax = imped. At top of resonance curve in Ohms: 122.3
- Magnet Assembly weight (oz): 158.4
- Frequency response range tested from 20-2000 Hz: 20-4600
- Recommend Sealed Enclosure size Outside volume (Vb)cq-ft 1.50
- Recommend Ported Enclosure size Outside volume (Vb)cq-ft 1.50
- Number of ports on the front of a box 1
- Port size (inches) 4x3.3
BUMPER -1248 C
The 1248 C is designed to provide rich sound for use in reinforcement systems, bass guitar combos, and stage monitors. With its 4 layer coil, vented pole piece, and 4 window heavy frame,it can withstand long hours of play. The model has been used in enclosures on dance floors as well as custom car audio sound designs.
- Diameter size in inches: 12
- Z - Nominal Impedance in Ohms 8
- Fs = Free air resonance frequesncy in Hz: 28.6
- Qts = Total Q Factor of driver: 0.32
- Vas = Equivalent acoustic volume in cubic feet: 4.9
- Xmax = peak linear displacement of cone in inches: 0.15
- Pe = Max power in watts: 400
- Ref = Driver's SPL 1W at 1m in dB: 91.6
- Voice Coil Diameter in inches 2
- Mounting Depth in inches: 4 1/2
- Revc = DC Voice coil resistance in Ohms: 6.11
- Zmax = imped. At top of resonance curve in Ohms: ######
- Magnet Assembly weight (oz): 106.4
- Frequency response range tested from 20-2000 Hz: 20-2900
- Recommend Sealed Enclosure size Outside volume (Vb)cq-ft 1.00
- Recommend Ported Enclosure size Outside volume (Vb)cq-ft 1.00
- Number of ports on the front of a box 1
- Port size (inches) 3x7.14
Eminence Kappa Pro-12A
The Eminence Kappa Pro-12A 12" speaker is recommended for professional audio as a sealed or vented midbass, or in a vented bass enclosure incorporating a high-pass filter. Also works great in horn-loaded designs, thanks to its high motor strength and excellent EBR (Equivalent Bandwidth Ratio). Made in the USA.
- PRODUCT SPECIFICATIONS
- Nominal Diameter 12"Power Handling (RMS)500 Watts
- Power Handling (max)1000 Watts Impedance8 ohms
- Frequency Response 57 to 2,800 Hz Sensitivity97.1 dB 1W/1m
- Voice Coil Diameter 3"Magnet Weight 80 oz.
- THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs)37 Hz DC Resistance (Re)5.46 ohms
- Voice Coil Inductance (Le)1.22 mH Mechanical Q (Qms)6.93
- Electromagnetic Q (Qes)0.25 Total Q (Qts)0.24
- Compliance Equivalent Volume (Vas)4.3 ft.³Mechanical Compliance of Suspension (Cms)0.32 mm/N
- BL Product (BL)17.3 Tm Diaphragm Mass Inc. Airload (Mms)59g
- Maximum Linear Excursion (Xmax)4.8 mm Surface Area of Cone (Sd)519.5 cm²
- MATERIALS OF CONSTRUCTION
- Cone Material Paper Surround Material Cloth
- Voice Coil Wire Material Copper Voice Coil Former Kapton® / Polyimide
- Basket / Frame Material Cast Aluminum Magnet Material Ferrite
- MOUNTING INFORMATION
- Overall Outside Diameter 12.38"Baffle Cutout Diameter 11.07"
- Depth 6.22"# Mounting Holes 8
- Sealed Volume 0.34 ft.³Sealed F3132 Hz
- Vented Volume 0.75 ft.³Vented F385 Hz
- Weight17.71 lbs.

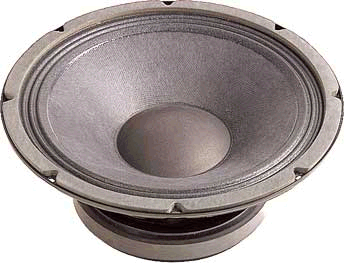

Eminence Kappa-12A
The Eminence Kappa-12A 12" speaker is recommended for professional audio as a mid/hi or full-range in a vented enclosure. Made in the USA.
- PRODUCT SPECIFICATIONS
- Nominal Diameter 12"Power Handling (RMS)450 Watts
- Power Handling (max)900 Watts Impedance 8 ohms
- Frequency Response 62 to 4,200 Hz Sensitivity 99.3 dB 1W/1m
- Voice Coil Diameter 3"Magnet Weight 80 oz.
- THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs)45 HzDC Resistance (Re)5.41 ohms
- Voice Coil Inductance (Le)0.77 mH Mechanical Q (Qms)7.76
- Electromagnetic Q (Qes)0.28 Total Q (Qts)0.27
- Compliance Equivalent Volume (Vas)4 ft.³Mechanical Compliance of Suspension (Cms)0.3 mm/N
- BL Product (BL)15.2 Tm Diaphragm Mass Inc. Air load (Mms)42g
- Maximum Linear Excursion (Xmax)3.2 mm Surface Area of Cone (Sd)519.5 cm²
- MATERIALS OF CONSTRUCTION
- Cone Material Paper Surround Material Cloth
- Voice Coil Wire Material Aluminum Voice Coil FormerKapton® / Polyimide
- Basket / Frame Material Steel Magnet Material Ferrite
- MOUNTING INFORMATION
- Overall Outside Diameter 12.26"Baffle Cutout Diameter 11"
- Depth 5.63"# Mounting Holes 8
- OPTIMUM CABINET SIZE (DETERMINED USING BASS BOX 6 PRO HIGH FIDELITY SUGGESTION)
- Sealed Volume 0.41 ft.³Sealed F3143 Hz
- Vented Volume 0.94 ft.³Vented F391 Hz
- Weight18 lbs.
Eminence Delta-12A
The Eminence Delta-12A 12" speaker is recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures. Also suitable for lead and bass guitar, keyboards, guitar combos, club music systems and stage monitors. Made in the USA.
- PRODUCT SPECIFICATIONS
- Nominal Diameter 12"Power Handling (RMS)400 Watts
- Power Handling (max)800 Watts Impedance8 ohms
- Frequency Response 54 to 5,000 Hz Sensitivity98.3 dB 1W/1m
- Voice Coil Diameter 2.5"Magnet Weight56 oz.
- THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs)55 Hz DC Resistance (Re)6.3 ohms
- Voice Coil Inductance (Le)0.74 mH Mechanical Q (Qms)5.27
- Electromagnetic Q (Qes)0.46 Total Q (Qts)0.43
- Compliance Equivalent Volume (Vas)2.9 ft.³Mechanical Compliance of Suspension (Cms)0.21 mm/N
- BL Product (BL)13.5 Tm Diaphragm Mass Inc. Airload (Mms)39g
- Maximum Linear Excursion (Xmax)2.4 mm Surface Area of Cone (Sd)519.5 cm²
- MATERIALS OF CONSTRUCTION
- Cone Material Paper Surround Material Cloth
- Voice Coil Wire Material Aluminum Voice Coil Former Kapton® / Polyimide
- Basket / Frame Material SteelMagnet MaterialFerrite
- MOUNTING INFORMATION
- Overall Outside Diameter 12.03"Baffle Cutout Diameter 10.95"
- Depth 5.35"# Mounting Holes8
- OPTIMUM CABINET SIZE (DETERMINED USING BASS BOX 6 PRO HIGH FIDELITY SUGGESTION)
- Sealed Volume 0.9 ft.³Sealed F3109 Hz
- Vented Volume 2.8 ft.³Vented F359 Hz
- EMINENCE DELTA-12A 12" DRIVER 8 OHM
- )Weight13.9 lbs.
Eminence Delta Pro-12A
The Eminence Delta Pro-12A 12" cast frame speaker is recommended for professional audio in sealed, vented, and horn-loaded enclosures. Ideal for full-range, mid/hi, and monitor wedges. Extremely efficient through the midrange, but with a surprisingly strong bass kick as well.
- PRODUCT SPECIFICATIONS
- Nominal Diameter12"Power Handling (RMS)400 Watts
- Power Handling (max)800 WattsImpedance8 ohms
- Frequency Response52 to 4,500 HzSensitivity99.2 dB 1W/1m
- Voice Coil Diameter2.5"Magnet Weight80 oz.
- THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs)51 HzDC Resistance (Re)5.71 ohms
- Voice Coil Inductance (Le)0.84 mHMechanical Q (Qms)7.56
- Electromagnetic Q (Qes)0.37Total Q (Qts)0.35
- Compliance Equivalent Volume (Vas)2.9 ft.³Mechanical Compliance of Suspension (Cms)0.21 mm/N
- BL Product (BL)15.3 TmDiaphragm Mass Inc. Airload (Mms)48g
- Maximum Linear Excursion (Xmax)4.6 mmSurface Area of Cone (Sd)532.4 cm²
- MATERIALS OF CONSTRUCTION
- Cone MaterialPaperSurround MaterialCloth
- Voice Coil Wire MaterialAluminumVoice Coil FormerKapton® / Polyimide
- Basket / Frame MaterialCast AluminumMagnet MaterialFerrite
- MOUNTING INFORMATION
- Overall Outside Diameter12.38"Baffle Cutout Diameter11.07"
- Depth6.22"# Mounting Holes8
- OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
- Sealed Volume0.54 ft.³Sealed F3125 Hz
- Vented Volume1.42 ft.³Vented F374 Hz
- EMINENCE DELTA PRO-12A 12" CAST FRAME DRIVER
- BrandEminence SpeakerModelDelta Pro-12A
- Part Number290-510UPC876358000333
- Product CategoryWoofers, Subwoofers & Midrange SpeakersUnit of MeasureEA
- Product Rating(28 Reviews)Weight17.9 lbs.
1248X BUMPER
The 1248 X is designed in both 4 ohm and 8 ohm to provide a rich sound for both use in home audio and custom sound designs in car audio. It has a double pressed heavy foam surround on a rigid and strong cone body, vented pole piece, 6 windows heavy frame and is built to withstand long hours of play.
- Diameter size in inches: 12
- Diameter size in centimeters: 30.48
- Z - Nominal Impedance in Ohms 4
- Fs = Free air resonance frequesncy in Hz: 36.9
- Qts = Total Q Factor of driver: 0.57
- Vas = Equivalent acoustic volume in cubic feet: 3.4
- Vas = Equivalent acoustic volume in liters: 95.55
- Xmax = peak linear displacement of cone in inches: 0.17
- Xmax = peak linear displacement of cone in mm: 4.32
- Pe = Max power in watts: 420
- Ref = Driver's SPL 1W at 1m in dB: 90.6
- SPL = The half-space ref. Efficiency: 90.7
- Voice Coil Diameter in inches 2.0
- Mounting Depth in inches: 4 1/2
- Sd = Piston Area in sq. m 0.047
- BL = T*M Flux Density, Length Product 8.99
- no = The half-space ref. effciency: 0.007
- Cms = Mechanical suspen. compliance: 305.909
- Mms = Mech. mass of cone & free air load: 60.623
- Qms = Mechanical Q factor of driver: 6.089
- Qes = Electrical Q factor of driver: 0.6336
- Revc = DC Voice coil resistance in Ohms: 3.64
- Zmax = imped. At top of resonance curve in Ohms: 38.621
- Fo = Free air resonance frequency in Hz: 36.900
- Magnet Assembly weight (oz): 106.4
- Frequency response range tested from 20-2000 Hz: 20-3700
- BOXES FOR 1 SPEAKER APPLICATION RECOMMENDED ENCLOSURES FOR SEALED BOXES (WOOD IS 3/4').
- Enclosure size (cubic feet) Outside volume (Vb) 1.00
- Enclosure size (liters) Outside volume 28.32
- Resonant frequency Hz (Fc) 77.16
- Cutoff frequency Hz (F3) 56.89
- BOXES FOR 1 SPEAKER APPLICATION RECOMMENDED ENCLOSURES FOR PORTED BOXES (WOOD IS 3/4').
- Enclosure size (cubic feet) Outside volume (Vb) 1.5
- Enclosure size (liters) Outside volume 42.48
- Number of ports on the front of a box 1
- Port size (inches) 4x8.13
- Turning frequency Hz (Fb) 45.00
- Cutoff frequency Hz (F3) 52.71
1290 CE - BUMPER
The 1290 C is a step up from our 1265 C model and is designed to provide a rich sound, withstand the long hours of play in all types of applications from stage monitors, high power bass guitar combos and multi way systems. With its 0.750' vented pole piece, 6 rolled in window basket, it is designed to eliminate vibrations and to ensure a long lasting solid sound. Its 0.390' thick 7.00' diameter washer, as well as the 7.5' X .750' thick magnet maximize the heat dissipations.
- Diameter size in inches: 12
- Z - Nominal Impedance in Ohms 8
- Fs = Free air resonance frequesncy in Hz: 53.0
- Qts = Total Q Factor of driver: 0.38
- Vas = Equivalent acoustic volume in cubic feet: 1.6
- Xmax = peak linear displacement of cone in inches: 0.17
- Pe = Max power in watts: 600
- Ref = Driver's SPL 1W at 1m in dB: 93.9
- Voice Coil Diameter in inches 2.5
- Mounting Depth in inches: 4 1/2
- Revc = DC Voice coil resistance in Ohms: 5.36
- Zmax = imped. At top of resonance curve in Ohms: 94.385
- Magnet Assembly weight (oz): 222.4
- Frequency response range tested from 20-2000 Hz: 20-5300
- Recommend Sealed Enclosure size Outside volume (Vb)cq-ft 1.50
- Recommend Ported Enclosure size Outside volume (Vb)cq-ft 1.50
- Number of ports on the front of a box 1
- Port size (inches) 4x3.
NZB-1250 Zebra 12"
Woofer with Rubber Edge
- 12” Paper Cone with Rubber Edge
- 2” Aluminum Voice Coil
- 50 oz. Magnet
- Impedance: 8 Ohm
- Frequency Response: 30Hz-3,500Hz
- Sensitivity: 90dB
- Max Power: 500 Watt
