6" SPEAKERS

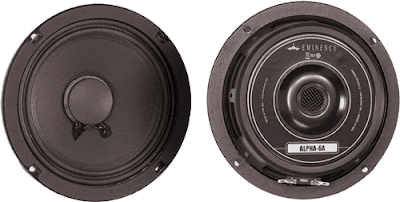

Eminence Alpha-6A

6" Midrange 8 Ohm

This open back 6-1/2" driver offers smooth frequency response and good sensitivity, making it great for PA midrange use. Perfect for small three-way systems and for use in background sound systems.

PRODUCT SPECIFICATIONS

• Nominal Diameter 6"
• Power Handling (RMS)100 Watts
• Power Handling (max)200 Watts
• Impedance 8 ohms
• Frequency Response 85 to 6,000 Hz
• Sensitivity 93.6 dB 1W/1m
• Voice Coil Diameter 1.5"
• Magnet Weight20 oz.

635-DRC

Bumper DRC Series Pro Audio Speakers.

Specifications
• Diameter size in inches 6.5'
• Diameter size in centimeters 16.5
• Z=Nominal Impedance in Ohms 6.5
• Fs=Free air resonance frequesncy in Hz 103.6
• Qts=Total Q Factor of driver 0.568
• Vas=Equivalent acoustic volume in cubic feet 0.554
• Vas=Equivalent acoustic volume in liters 15.7
• Xmax=peak linear displacement of cone in inch. 0.02
• Xmax=peak linear displacement of cone in mm 0.59
• Pe=Max power in watts 200
• SPL=The half-space ref. Efficiency 96.12
• Voice Coil Diameter in inch. 1.5
• Mounting Depth in inch. 2.3
• Sd=Piston Area in sq.m 165.1
• BL=T*M Flux Density,Length Product 8.43
• no=The half-space ref. Efficiency 5.52%
• cms=Mechanical Suspen.Compliance 0.24
• Mms=Mech. Mass of cone&free air load 9.68
• Qms=Mechanical Q factor of driver 4.112
• Qes=Electrical Q factor of driver 0.659
• Revc=DC Voice coil resistance in Ohms 7.430
• Zmax=imped. At top of resonance curve in Ohm 59.79
• Frequency response range tested from 20-2000 Hz: 104-6k
• Magnet Assembly Weight (oz) 54

635DRCB BUMPER

Specification for 635DRCB Series Car Audio Speakers.

• Diameter size in inches: 6.5
• Diameter size in centimeters: 16.5
• Z - Nominal Impedance in Ohms 6.5
• Fs = Free air resonance frequesncy in Hz: 98.25
• Qts = Total Q Factor of driver: 0.477
• Vas = Equivalent acoustic volume in cubic feet: 0.692
• Vas = Equivalent acoustic volume in liters: 19.59
• Xmax= Max Travel in Inches: 0.02
• Xmax= Max travel in MM: 0.59
• Pe = Max power in watts: 200
• SPL=The half-space ref. Efficiency: 97.42
• Voice Coil Diameter in inches 1.5 M
• ounting Depth in inches: 2.25
• Sd = Piston Area in sq. m 165.10
• BL = T*M Flux Density, Length Product 8.84
• no = The half-space ref. effciency: 3.40%
• Cms = Mechanical suspen. compliance: 0.30
• Mms = Mech. mass of cone & free air load: 8.62
• Qms = Mechanical Q factor of driver: 5.628
• Qes = Electrical Q factor of driver: 0.521
• Revc = DC Voice coil resistance in Ohms: 7.6
• Zmax = imped. At top of resonance curve in Ohms: 90.21
• Frequency response: : 98-6k
• Magnet Assembly Weight (oz): 58

NWX-510 Nippon America

Description:

• 5” Paper Cone
• 1” Aluminum Voice Coil
• 16oz. Magnet with Cover
• 60 Watt
• 8 Ohm.

NWX-516-8SQ Nippon America

Description:

• 5” Poly Cone
• 1” Voice Coil
• 100 watts
• 16 oz.
• 8 Ohm.

NWX-620-4 Nippon America

Description:

• Standard Speaker
• 6.5” Paper Cone
• 1” Aluminum Voice Coil
• 20 oz. Barium Ferrite Magnet
• 80 Watt
• 4 ohms.

NWX-620-8 Nippon America

Standard Speaker

• 6.5” Paper Cone
• 1” Aluminum Voice Coil
• 20 oz. Barium Ferrite Magnet
• 80 Watt
• 8 ohms.

S-6200M SPYN

General Specifications

• Nominal Basket Diameter 6.5”, 165mm
• Nominal Impedance 8 ohms
• Power Rating
• Watts 100W
• Music Program 200W
• Resonance 118Hz
• Usable Frequency Range 85Hz-6kHz
• Sensitivity 93.6
• Magnet Weight 20 oz
• Gap Height 0.25”, 6.35mm
• Voice Coil Diameter 1.5”, 38.1mm
• Thiele - Small Parameters
• Resonant Frequency (fs) 118Hz
• DC Resistance (Re) 7.2
• Coil Inductance (Le) 0.19mH
• Mechanical Q (Qms) 5.68
• Electromagnetic Q (Qes) 0.60
• Total Q (Qts) 0.54
• Compliance Equivalent Volume (Vas) 5.8 ltr/0.2 cu. ft.
• Peak Diaphragm Displacement Volume (Vd) 44cc
• Mechanical Compliance of Suspension (Cms) 0.26mm/N
• BL Product (BL) 8.0 T-M
• Diaphragm Mass inc. Airload (Mms) 7 grams
• Efficiency Bandwidth Product (EBP) 197
• Maximum Linear Excursion (Xmax) 3.5mm
• Surface Area of Cone (Sd) 126.7cm
• Maximum Mechanical Limit (Xlim) 4.0mm
