10" SPEAKERS

Eminence Deltalite II 2510 Neo 10" Speaker Driver

The Eminence Deltalite II 2510 cast frame 10" speaker is recommended for professional audio loudspeaker systems. It will provide great results as a mid/hi or full range component, or as a stage monitor woofer; also in bass guitar cabinets. The Deltalite II 2510 performs superbly when installed in sealed or vented speaker enclosures.

• PRODUCT SPECIFICATIONS
• Nominal Diameter10"Power Handling (RMS)250 Watts
• Power Handling (max)500 WattsImpedance8 ohms
• Frequency Response60 to 4,000 HzSensitivity97.3 dB 1W/1m
• Voice Coil Diameter2.5"Magnet Weight7 oz.
• THIELE-SMALL PARAMETERS
• Resonant Frequency (Fs)53 HzDC Resistance (Re)5.06 ohms
• Voice Coil Inductance (Le)0.4 mHMechanical Q (Qms)5.76
• Electromagnetic Q (Qes)0.45Total Q (Qts)0.42
• Compliance Equivalent Volume (Vas)1.9 ft.³Mechanical Compliance of Suspension (Cms)0.3 mm/N
• BL Product (BL)10.6 TmDiaphragm Mass Inc. Airload (Mms)31g
• Maximum Linear Excursion (Xmax)4.2 mmSurface Area of Cone (Sd)350.1 cm²
• MATERIALS OF CONSTRUCTION
• Cone MaterialPaperSurround MaterialCloth
• Voice Coil Wire MaterialAluminumVoice Coil FormerKapton® / Polyimide
• Basket / Frame MaterialCast AluminumMagnet MaterialNeodymium
• MOUNTING INFORMATION
• Overall Outside Diameter10.25"Baffle Cutout Diameter9.15"
• Depth4.9"# Mounting Holes8
• OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
• Sealed Volume0.56 ft.³Sealed F3108 Hz
• Vented Volume1.71 ft.³Vented F358 Hz
• EMINENCE DELTALITE II 2510 NEO 10" SPEAKER DRIVER
• BrandEminence SpeakerModelDeltalite II 2510
• Part Number290-591UPC876358000609
• Product CategoryWoofers, Subwoofers & Midrange SpeakersUnit of MeasureEA
• Product Rating(8 Reviews)Weight5.7 lbs.

Eminence ALPHA-10A 150 WATTS RMS

• Specifications
• Nominal Basket Diameter 10" / 254mm
• Impedance 8 ohms
• RMS Power Rating 150 Watts
• Program Power Handling 300 Watts
• Frequency Response 57Hz - 4.5kHz
• Sensitivity (1W/1m) 95.6dB
• Voice Coil Diameter 1.5" / 38.1mm
• Max. Crossover Frequency 4.5kHz
• Rec. Enclosure Vol.(Sealed) .3-.4 cu. ft ./ 8.5-11.3 L
• Rec. Enclosure Vol.(Vented) 1.0-1.9 cu. ft ./ 28.3-53.8 L
• Mounting Information
• Overall Diameter 10.11" / 256.8mm
• Bolt Circle Diameter 9.6" / 243.8mm
• Baffle Cutout Diameter 9.13" / 231.8mm
• No. Of Mounting Holes 8
• Mounting Hole Diameter 0.275" / 7mm
• Overall Depth 3.90" / 99mm
• Magnet Weight 20 oz.
• Net Weight 4.5 lbs. / 2.0 kg.
• Shipping Weight 5.6 lbs. / 2.5kg.
• Thiele-Small Parameters
• Resonant Frequency (fs) 50 Hz
• Impedance (Re) 5.31 ohms
• Coil Inductance (Le) 0.66mH
• Electromagnetic Q (Qes) .66
• Mechanical Q (Qms) 5.21
• Total Q (Qts) .59
• Compliance Equivalent Vol. (Vas) 82.2 Liters/2.9cu. ft.
• Voice Coil Overhang (Xmax) 3.2mm
• Surface Area of Cone (Sd) .03554m2

EMINENCE DELTA-10A 10" MIDRANGE DRIVER

For great midrange and woofer performance, try the Eminence Delta-10A 10" speaker. Its hefty 56 oz. magnet, 2-1/2" voice coil, and optimized moving parts are designed to guarantee success.

• PRODUCT SPECIFICATIONS
• Nominal Diameter10"Power Handling (RMS)350 Watts
• Power Handling (max)700 WattsImpedance8 ohms
• Frequency Response63 to 3,700 HzSensitivity98.8 dB 1W/1m
• Voice Coil Diameter2.5"Magnet Weight56 oz. THIELE-SMALL PARAMETERS
• Resonant Frequency (Fs)66 HzDC Resistance (Re)5.42 ohms
• Voice Coil Inductance (Le)0.74 mHMechanical Q (Qms)6.53
• Electromagnetic Q (Qes)0.35Total Q (Qts)0.33
• Compliance Equivalent Volume (Vas)1.1 ft.³Mechanical Compliance of Suspension (Cms)0.18 mm/N
• BL Product (BL)14.4 TmDiaphragm Mass Inc. Airload (Mms)32g
• Maximum Linear Excursion (Xmax)3.5 mmSurface Area of Cone (Sd)344.9 cm²
• MATERIALS OF CONSTRUCTION
• Cone MaterialPaperSurround MaterialCloth
• Voice Coil Wire MaterialAluminumVoice Coil FormerKapton® / Polyimide
• Basket / Frame MaterialSteelMagnet MaterialFerrite
• MOUNTING INFORMATION
• Overall Outside Diameter10.09"Baffle Cutout Diameter9.05"
• Depth4.25"# Mounting Holes8
• OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
• Sealed Volume0.18 ft.³Sealed F3171 Hz
• Vented Volume0.43 ft.³Vented F3104 Hz
• EMINENCE DELTA-10A 10" MIDRANGE DRIVER 8 OHM
• BrandEminence SpeakerModelDelta-10A
• Part Number290-412UPC876358000203
• Product CategoryWoofers, Subwoofers & Midrange SpeakersUnit of MeasureEA
• Product Rating(9 Reviews)Weight12 lbs.

1048 DRC - BUMPER

The 1048 C has been a staple product of Bumper Industries for years and a favorite among bass guitar enclosure manufacturers. This model is used in many 4X10' and 8X10' speaker enclosures and big sound systems. Because of its frequency range and durability, it has been widely used in custom car audio systems, sealed and ported bass guitars, and car enclosures as well.

• Diameter size in inches: 10
• Z - Nominal Impedance in Ohms 8
• Fs = Free air resonance frequesncy in Hz: 49.9
• Qts = Total Q Factor of driver: 0.54
• Vas = Equivalent acoustic volume in cubic feet: 1.6
• Xmax = peak linear displacement of cone in inches: 0.19
• Pe = Max power in watts: 400
• Ref = Driver's SPL 1W at 1m in dB: 91.5
• Voice Coil Diameter in inches 2
• Mounting Depth in inches: 4
• Revc = DC Voice coil resistance in Ohms: 5.63
• Zmax = imped. At top of resonance curve in Ohms: 52.303
• Magnet Assembly weight (oz): 106.4
• Frequency response range tested from 20-2000 Hz: 20-5000
• Recommend Sealed Enclosure size Outside volume (Vb)cq-ft 1.00
• Recommend Ported Enclosure size Outside volume (Vb)cq-ft 1.00
• Number of ports on the front of a box 1
• Port size (inches) 3x5.36

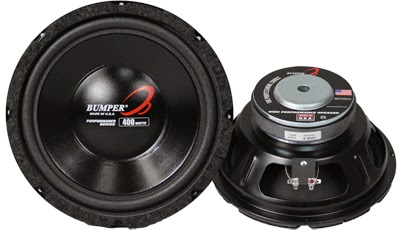

1048X - BUMPER

The 1048 X is designed in both 4 ohm and 8 ohm to provide a rich sound for both use in home audio and custom sound designs in car audio. It has a double pressed heavy foam surround on a rigid and strong cone body , vented pole piece, with a heavy magnet assembly to withstand long hours of play.

• Diameter size in inches: 10
• Diameter size in centimeters: 25.40
• Z - Nominal Impedance in Ohms 4
• Fs = Free air resonance frequesncy in Hz: 39.8
• Qts = Total Q Factor of driver: 0.22
• Vas = Equivalent acoustic volume in cubic feet: 1.4
• Vas = Equivalent acoustic volume in liters: 38.28
• Xmax = peak linear displacement of cone in inches: 0.17
• Xmax = peak linear displacement of cone in mm: 4.32
• Pe = Max power in watts: 420
• Ref = Driver's SPL 1W at 1m in dB: 91.9
• SPL = The half-space ref. Efficiency: 91.9
• Voice Coil Diameter in inches 2.0
• Mounting Depth in inches: 4
• Sd = Piston Area in sq. m 0.03
• BL = T*M Flux Density, Length Product 14.01
• no = The half-space ref. effciency: 0.010
• Cms = Mechanical suspen. compliance: 291.657
• Mms = Mech. mass of cone & free air load: 54.714
• Qms = Mechanical Q factor of driver: 5.909
• Qes = Electrical Q factor of driver: 0.2387
• Revc = DC Voice coil resistance in Ohms: 3.42
• Zmax = imped. At top of resonance curve in Ohms: 88.078
• Fo = Free air resonance frequency in Hz: 39.841
• Magnet Assembly weight (oz): 106.4
• Frequency response range tested from 20-2000 Hz: 20-4000
• BOXES FOR 1 SPEAKER APPLICATION RECOMMENDED ENCLOSURES FOR SEALED BOXES (WOOD IS 3/4').
• Enclosure size (cubic feet) Outside volume (Vb) 1.00
• Enclosure size (liters) Outside volume 28.32
• Resonant frequency Hz (Fc) 51.52
• Cutoff frequency Hz (F3) 166.36
• BOXES FOR 1 SPEAKER APPLICATION RECOMMENDED ENCLOSURES FOR PORTED BOXES (WOOD IS 3/4').
• Enclosure size (cubic feet) Outside volume (Vb) 1
• Enclosure size (liters) Outside volume 28.32
• Number of ports on the front of a box 1
• Port size (inches) 3x7.14
• Turning frequency Hz (Fb) 45
• Cutoff frequency Hz (F3) 45.43
